SPECIAL TOOL


Tool
 Number
 Name
 Use

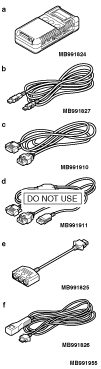

MB991955

    a: MB991824
    b: MB991827
    c: MB991910
    d: MB991911
    e: MB991825
    f: MB991826
 M.U.T.-III sub-assembly

    a: Vehicle communication interface (V.C.I.)
    b: USB cable
    c: M.U.T.-III main harness A (applicable to vehicles with CAN communication)
    d: M.U.T.-III main harness B (applicable to vehicles without CAN communication)
    e: Measurement adapter
    f: Trigger harness
 CVT check (M.U.T.-III diagnosis code display and service data display)
caution For vehicles with CAN communication, use the M.U.T.-III main harness A to send the simulated vehicle speed. If you connect the M.U.T.-III main harness B instead, the CAN communication does not function correctly.


MB992006
 Extra fine probe
 Continuity check and voltage measurement at harness wire or connector


MD998330

    a: MD998331
 Oil pressure gauge (3.0 MPa)

    a: Joint
 Hydraulic pressure measurement


MB992127
 Joint


MB991895
 Engine hanger
 When the engine hanger is used: Supporting the engine assembly during removal and installation of the transmission assembly


MB991928

    A: MB991929
    B: MB991930
    C: MB991931
    D: MB991932
    E: MB991933
    F: MB991934
 Engine hanger

    A: Joint (50) ×2
    B: Joint (90) ×2
    C: Joint (140) ×2
    D: Foot (standard) ×4
    E: Foot (short) ×2
    F: Chain and hook assembly


MB992201
 Engine hanger plate
