INSPECTION


WINDSHIELD WASHER MOTOR CHECK


  1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.
  2. Check to see that the washer fluid is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to earth.

WINDSHIELD WASHER FLUID EJECTION CHECK

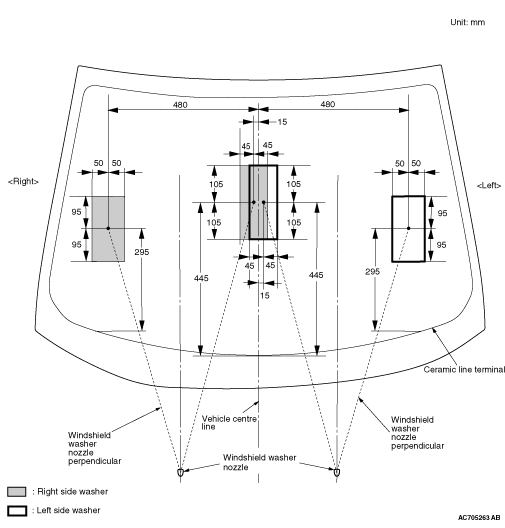

Move the nozzle to adjust the position so that the washer fluid is ejected shown in the illustration.
