1.

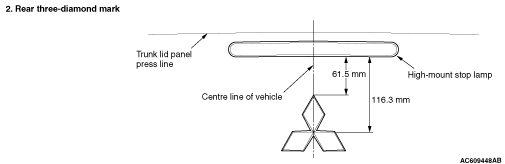

Installation position
Attach each mark to the position shown in the illustration.
|
|
|
2.Installation procedure
(1)
Use 3M™ AAD Part number 8906 or equivalent to clean the mark installation surfaces on the body.
(2)
|
|
| caution |
When attaching the marks, the ambient temperature should be 20 - 38°C and the air should be completely free of dust. If the ambient temperature is lower than 20°C, the marks and the places on the vehicle body where the marks are to be attached should be heated to 20 - 30°C.
|
|
Peel off the protection sheet on the back of the marks to affix it in position.
|
)
.))
)
)
)
