GENERAL INFORMATION




caution Do not disassemble the SRS air bag components or seat belt with pre-tensioner. Also, do not apply an impact.
note *: SRS (Supplemental Restraint System)

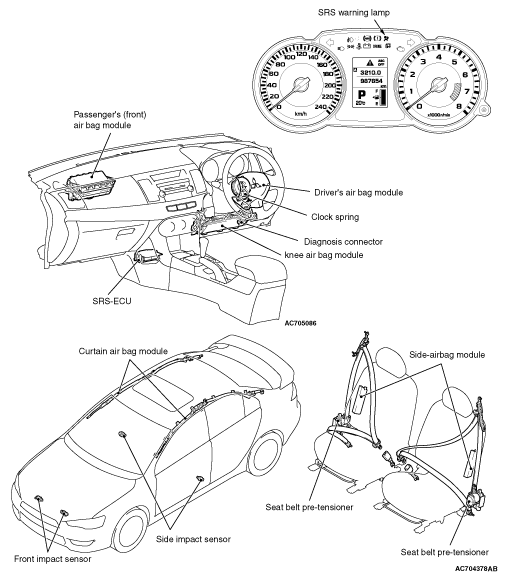

CONSTRUCTION DIAGRAM

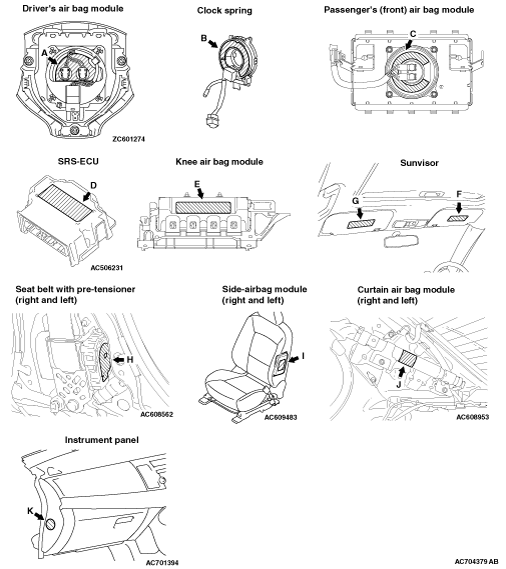

CAUTION LABELS


The labels indicating the precautions for handling and maintenance of SRS air bags and seat belt with pre-tensioner are adhered to the locations shown in the above figures.


Label contents
A, C
DANGER
FLAMMABLE EXPLOSIVE
DO NOT
DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY;
OR STORE AT HIGH TEMPERATURE (93°C or HIGHER).
REFER TO WORKSHOP MANUAL FOR DETAILS.
B
CAUTION: SRS CLOCK SPRING
PLEASE DO NOT TURN EXCEPT WHEN REQUIRED.
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE, PLEASE REPLACE ENTIRE UNIT ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. ALIGNMENT OF MODULES IS NECESSARY WHEN THEY ARE ADJUSTED AND/OR INSTALLED FOR THE ALIGNMENT PROCEDURES, FOLLOW THE SERVICE MANUAL INSTRUCTIONS.
D
CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.
E
DANGER
FLAMMABLE EXPLOSIVE
SRS AIR BAG MODULE

  • Do not disassemble or shock.
  • Do not heat or incinerate.
  • Do not contact with electricity or tester probes.
  • Do not test or diagnose.
  • Do not store in more than 200°F (93°C).
  • Store the air bag cover is top.
  • For information on handling, replacement, and disposal methods, refer to the service manual.
F
WARNING

  • DEATH OR SERIOUS INJURY can occur.
  • ALWAYS use SEAT BELT and CHILD SEAT.
  • DO NOT sit or lean unnecessarily close to the air bag.
  • DO NOT place install any objects over the air bag or between the air bag and yourself.
G

WARNING

  • DEATH OR SERIOUS INJURY can occur.
  • DO NOT place rear-facing child seat on this seat with airbag.
H
SEAT BELT PRETENSIONER CAUTION
THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR.
DANGER FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY

  • DO NOT REMOVE. INSTALL IT INTO ANOTHER VEHICLE.
  • SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.
  • DO NOT DISMANTLE INCINERATE OR BRING INTO CONTACT WITH ELECTRICITY.
I
WARNING
SRS AIR BAG MODULE FLAMMABLE/EXPLOSIVE
TO AVOID SERIOUS INJURY:

  • DO NOT REPAIR, DISASSEMBLE OR TAMPER.
  • AVOID CONTACT WITH FLAME OR ELECTRICITY.
  • DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.
  • STORE BELOW 200°F (93°C).
  • BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR IMPORTANT FURTHER DATA.
J
DANGER CONTAINS HIGH-PRESSURE GAS AND FLAMMABLE MATERIAL
To avoid injury, NEVER; [Repair, Disassembly, Incinerate, Bring into contact with electricity, Install onto another vehicle Store where the temperature is above 93°C (200°F)] -See Repair Manual for details.-
K

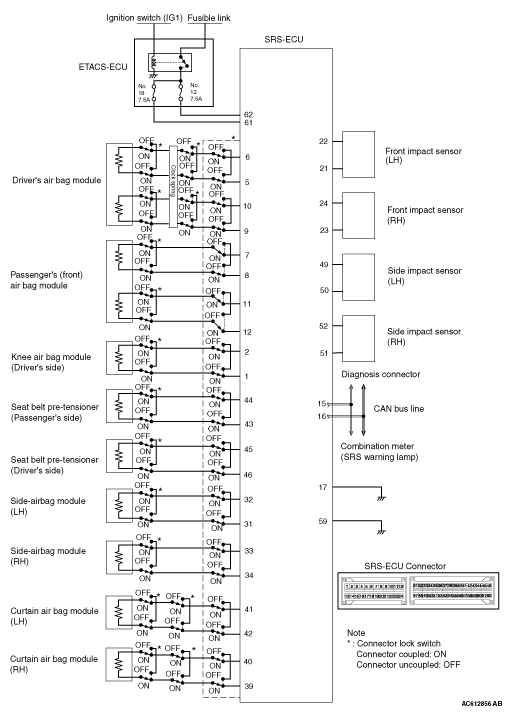

SRS SYSTEM CIRCUIT DIAGRAM




Number in system circuit diagram
Circuit name
Universal harness
Wire diameter and colour
1
Driver’s knee air bag squib (+)
0.5R-L
2
Driver’s knee air bag squib (-)
0.5BR
5
Driver’s air bag 1st squib (+)
0.5Y
6
Driver’s air bag 1st squib (-)
0.5Y-B
7
Passenger’s (front) air bag 1st squib (-)
0.5Y-R
8
Passenger’s (front) air bag 1st squib (+)
0.5Y-G
9
Driver’s air bag 2nd squib (+)
0.5Y-L
10
Driver’s air bag 2nd squib (-)
0.5Y-V
11
Passenger’s (front) air bag 2nd squib (-)
0.5Y-GR
12
Passenger’s (front) air bag 2nd squib (+)
0.5LG
15
CAN_H
0.5L
16
CAN_L
0.5W
17
Earth
0.5B
21
Left-side front impact sensor (-)
0.5W-B
22
Left-side front impact sensor (+)
0.5SB
23
Right-side front impact sensor (-)
0.5GR
24
Right-side front impact sensor (+)
0.5G
31
Left-side side-airbag squib (+)
0.5Y-G
32
Left-side side-airbag squib (-)
0.5Y-R
33
Right-side side-airbag squib (-)
0.5Y-B
34
Right-side side-airbag squib (+)
0.5Y
39
Right-side curtain air bag squib (+)
0.5Y-L
40
Right-side curtain air bag squib (-)
0.5Y-V
41
Left-side curtain air bag squib (-)
0.5Y-GR
42
Left-side curtain air bag squib (+)
0.5LG
43
Front passenger’s pre-tensioner squib (+)
0.5W
44
Front passenger’s pre-tensioner squib (-)
0.5R
45
Driver’s pre-tensioner squib (-)
0.5BR
46
Driver’s pre-tensioner squib (+)
0.5G
49
Left-side side impact sensor
0.5O
50
Left-side side impact sensor
0.5LG
51
Right-side side impact sensor
0.5R-B
52
Right-side side impact sensor
0.5W-L
59
Earth
0.5B
61
Ignition switch (IG1) power supply (fuse No. 18)
0.5V
62
Ignition switch (IG1) power supply (fuse No. 12)
0.5GR
note For how to read the harness wire diameter and wire colour, refer to the Electrical Wiring Diagram.
