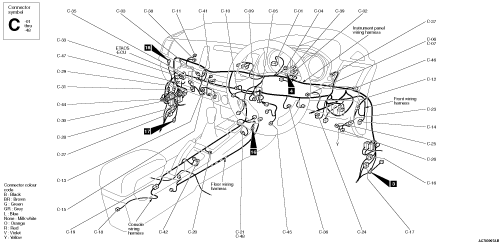

DASH PANEL



C-01
 (24)
 Combination meter
C-02
 (24)
 J/C (3)
C-03
 (24)
 J/C (CAN2)
C-04
 (24)
 J/C (CAN1)
C-05
 (2)
 Interior temperature sensor
C-06
 (12)
 WCM <Vehicles with WCM>
C-07
 (12)
 Receiver antenna module <Vehicles with KOS>
C-09
 (2)
 Radio antenna
C-10
 (16)
 Centre panel unit
C-11
 (4-Y)
 Passenger’s (front) air bag module (squib)
C-12
 (10)
 AFS-ECU
C-13
 (16-B)
 A/C-ECU
C-14
 (24)
 Headlamp automatic levelling-ECU
C-15
 (20-B)
 A/C-ECU
C-16
 (20)
 Instrument panel wiring harness and floor wiring harness combination
C-17
 (22)
 Instrument panel wiring harness and floor wiring harness combination
C-18
 (2)
 Accessory socket (floor console)
C-19
 (6)
 Instrument panel wiring harness and console wiring harness combination
C-20
 (10)
 Selector lever assembly <CVT>
C-21
 (2)
 Cigarette lighter (instrument panel)
C-23
 (40)
 KOS-ECU
C-24
 (4)
 Stop lamp switch
C-25
 (2-B)
 Knee air bag module (squib)
C-26
 (16-B)
 Diagnosis connector
C-27
 (24)
 Instrument panel wiring harness and floor wiring harness combination
C-28
 (20)
 Instrument panel wiring harness and floor wiring harness combination
C-29
 (12)
 Front wiring harness and floor wiring harness combination
C-30
 (24)
 J/C (4)
C-31
 (22)
 Front wiring harness and floor wiring harness combination
C-33
 (22)
 CVT-ECU
C-35
 (26)
 CVT-ECU
C-36
 (2)
 Clutch switch <M/T>
C-37
 (4)
 Meter information switch
C-38
 (12)
 J/C (2)
C-39
 (24)
 J/C (1)
C-41
 (24)
 Hands free-ECU
C-42
 (6)
 No connection
C-44
 (26)
 No connection
C-45
 (4-B)
 Oxygen sensor (front)
C-46
 (24)
 J/C (6)
C-47
 (4)
 No connection <M/T>
C-48
 (2)
 Accessory socket (instrument panel)

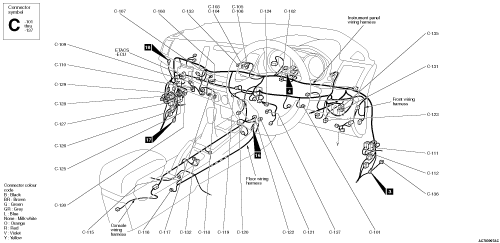

DASH PANEL (CONTINUED)



C-101
 (2)
 Jumper connector <M/T>
C-102
 (6)
 Photo sensor
C-103
 (20)
 Radio and CD player
C-104
 (20)
 Multivision display
C-105
 (18)
 Radio and CD player
C-106
 (18)
 Multivision display
C-107
 (5)
 Outside/inside air selection damper control motor
C-108
 (5)
 Mode selection damper control motor
C-109
 (4)
 Power transistor
C-110
 (2)
 Blower motor
C-111
 (12)
 Instrument panel wiring harness and front door wiring harness (RH) combination
C-112
 (24-BR)
 Instrument panel wiring harness and front door wiring harness (RH) combination
C-115
 (3)
 Inside transmission antenna assembly (front) <Vehicles with KOS>
C-116
 (1-B)
 Parking brake switch
C-117
 (5)
 Air mixing damper control motor
C-118
 (2)
 Fin thermo sensor
C-119
 (12)
 A/C control panel
C-120
 (6-B)
 Audio adapter
C-121
 (32-Y)
 SRS-ECU
C-122
 (24-Y)
 SRS-ECU
C-123
 (6-B)
 Accelerator pedal position sensor
C-124
 (24)
 J/C (CAN3)
C-125
 (12)
 Instrument panel wiring harness and front door wiring harness (LH) combination
C-126
 (24-BR)
 Instrument panel wiring harness and front door wiring harness (LH) combination
C-127
 (16-BR)
 Instrument panel wiring harness and front wiring harness combination
C-128
 (22)
 Instrument panel wiring harness and front wiring harness combination
C-129
 (2)
 Instrument panel wiring harness and front wiring harness combination
C-130
 (12)
 Instrument panel wiring harness and roof wiring harness combination
C-131
 (6-GR)
 No connection
C-132
 (4)
 AFS control switch
C-133
 (24)
 Multivision display
C-135
 (6)
 ASC off switch <Vehicles with ASC>
C-136
 (1-GR)
 No connection
C-137
 (6-B)
 G and yaw rate sensor <Vehicles with ASC>

DASH PANEL (CONTINUED)

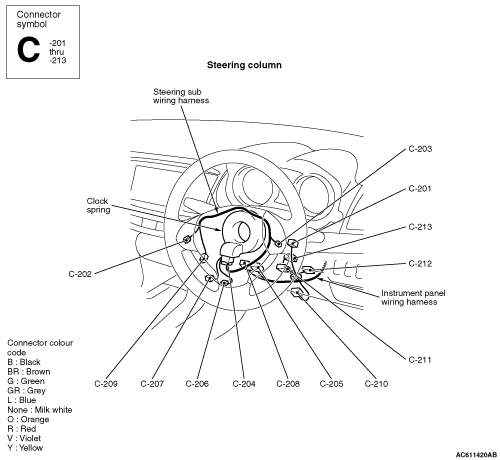

C-201
 (10)
 Column switch
C-202
 (5-R)
 Steering wheel audio remote control switch
C-203
 (4-L)
 Cruise control switch
C-204
 (5)
 Clock spring and steering sub wiring harness combination
C-205
 (6)
 Clock spring
C-206
 (1)
 Horn switch
C-207
 (4-Y)
 Driver’s air bag module (Squib)
C-208
 (4-Y)
 Clock spring
C-209
 (4-Y)
 Steering wheel voice control switch
C-210
 (3)
 Paddle shift switch <CVT>
C-211
 (5)
 Steering wheel sensor <AFS, ASC>
C-212
 (6)
 Ignition switch
C-213
 (12)
 Key reminder switch

DASH PANEL (CONTINUED)

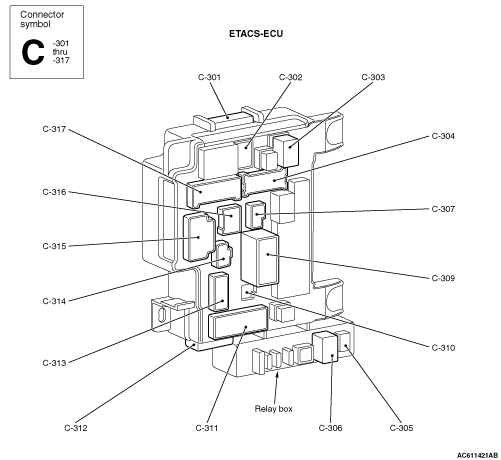

C-301
 (24)
 Instrument panel wiring harness and ETACS-ECU combination
C-302
 (4)
 No connection
C-303
 (4)
 Blower relay
C-304
 (16)
 Front wiring harness and ETACS-ECU combination
C-305
 (4)
 No connection
C-306
 (4)
 Rear window defogger relay
C-307
 (2-B)
 Front wiring harness and ETACS-ECU combination
C-309
 (2-B)
 Front wiring harness and ETACS-ECU combination
C-310
 (4)
 No connection
C-311
 (20)
 Floor wiring harness and ETACS-ECU combination
C-312
 (16)
 Front wiring harness and ETACS-ECU combination
C-313
 (16-BR)
 Floor wiring harness and ETACS-ECU combination
C-314
 (2)
 Floor wiring harness and ETACS-ECU combination
C-315
 (19)
 Instrument panel wiring harness and ETACS-ECU combination
C-316
 (6)
 Roof wiring harness and ETACS-ECU combination
C-317
 (15)
 Instrument panel wiring harness and ETACS-ECU combination
